full enclosed cnc fiber laser cutting machine 1000w 1080nm laser

제품 세부 사항

인증 : ISO9001 : 2008

결제 및 배송 조건 :

최소 주문 수량 : 1

가격 : 협상

포장 세부 사항 : 나무로되는 케이스

배달 시간 : 7-15 일

공급 능력 : 1 units / month

자세한 제품 설명

상품명:	Full Enclosed Laser Cutting Machine , 1000W Metal Cutting Machine	레이저의 파워 :	1000w 1500w 2000W
레이저 파장 :	1080nm	업무 공간:	3000 * 1500mm
절단 두께 :	0-16MM (레이저 출력에 따라 다름)	전력 공급 :	380V
보증:	일년

제품 설명

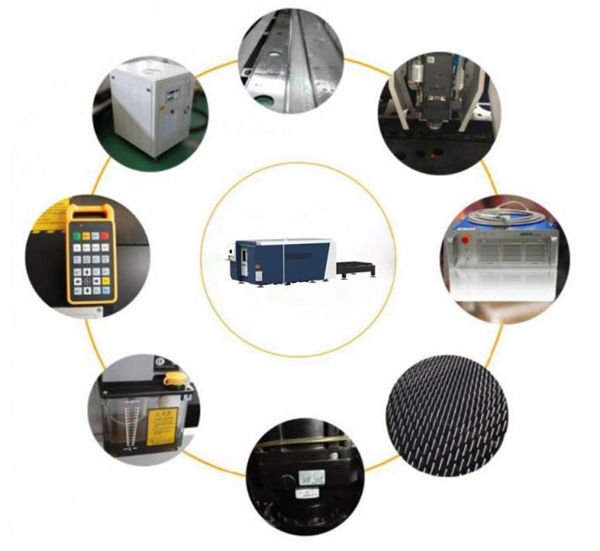

Integrated machine design:left and right collecting drawer on the left and right side of the machine,highly saving space

Fiber laser has high and stable function and lifespan which is over 100000 hours

Higher cutting quality and efficiency with cutting speed being up to 25m/min with perfect cutting edge

High performance reducer, gear and rack; Japanese guide and ball screw

주요 특징

1. The middle part of the two platforms are not in the same level, which can Save time for feeding and unloading material in short time.
2. Fully enclosed design can greatly reduce damage to the health from the laser, especially for those countries who strictly required to the environmental protection.
3. The exchange platform with heavy capacity can be placed 8-10 mm carbon steel plate. The table has universal balls. There is a sheet metal clamping device beside the table, which can firmly fix the materials on the table to avoide workpiece movement.
4. If it was powered off or the chain was pulled off , the platform can be pushed in by hand. At the same time it has anti-collision protection device on the left side of the machine to protect of the machine from damaging.
5. The overall steel beam is very steel, the machine beam used a 17 mm thickness plate, and beam base’s thickness is about 30 mm.
6. Using the well-known brand of Taiwan helical rack, Taiwan's silver (HIWIN) 30 rail, good quality electronic devices, and Franch drive motor to ensure the accuracy of the machine work.
7. Faster Acceleration , repeated positioning accuracy is about 0.03mm,and its cutting accuracy can reach 7-8 silk.
8. Dust cover is made of the fire-retardant materials.There will not be break and pull off with a long time use, at the same time it can prevent the spark burning.

기술 사양

^{레이저 파장}	^1080nm
^{절단 두께}	^0.2-16mm
^{레이저 출력}	^1000W
^{최대 처리 범위}	^{3000 * 1500mm}
^{머신 드라이브 모드}	^{수입 랙 기어 및 피니언 드라이브}
^{Y X. 축 위치 정확도}	^{± 0.01mm}
^{XY 축 반복 위치 결정 정확도}	^{± 0.01mm}
^{전원 모드}	^{380V / 50Hz}
^{최대 절삭 속도}	^{45m / 분}
^{최소 절단 선 너비}	^0.02mm
^{냉각 모드}	^{3P 수냉}
